    Roller 5"×6 5/8" Casing Centralizer With Sprial Vane

    Ask Lasest Price
    Brand Name : Puyang Zhongshi Group
    Model Number : 4 1/2"~20"
    Certification : API,ISO,QHSE
    Price : Negotiable
    Payment Terms : T/T, MoneyGram
    Delivery Time : depends on quantity
    • Product Details
    • Company Profile

    Roller 5"×6 5/8" Casing Centralizer With Sprial Vane

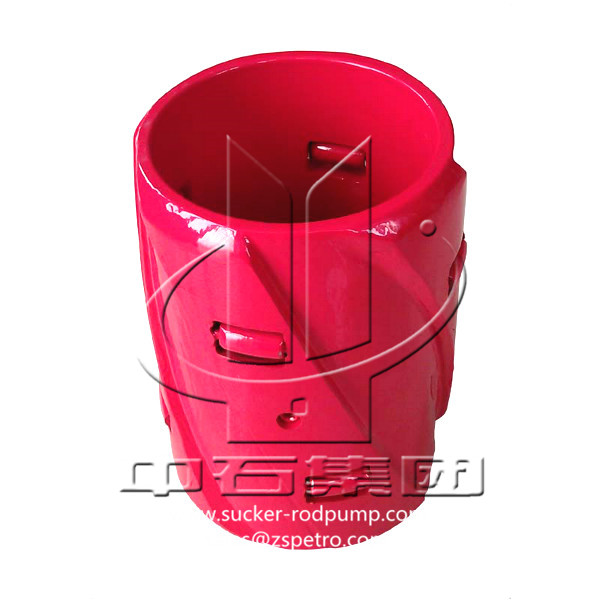

    Roller Casing Centralizer with Sprial Vane


    Roller Casing Centralizer with Sprial Vane are designed in rigid body with straight or spiral blades. Rollers provide low drag to get casing, liners, or screens to bottom successfully with reduced rig time and costs.

    Roller Casing Centralizer with Sprial Vane Features
    • The roller centralizers are designed in rigid body with straight or spiral blades.
    • Rollers provide low drag to get casing, liners, or screens to bottom successfully with reduced rig time and costs.
    • Minimal roller-contact area in open hole applications reduces the risk of differential sticking and provides optimal standoff for increased operational efficiency.
    • The roller centralizer is used in deviated and horizontal wells.

    Roller Casing Centralizer with Sprial Vane Specification


    Specificationcasing size (mm)Hole Size (mm)Inner Diameter (mm)Outer Diameter (mm)
    4-1/2"×6"114152118146
    5"×6 5/8"127168131162
    5-1/2″×8-1/2″140216142210
    6-5/8″×8-1/2″168216172210
    7″×8-1/2″178216182210
    7"× 9-1/2"178241182235
    9-5/8″×12-1/4″244311249305
    13-3/8″×17-1/2"340445344439
