    Casting Zinc Alloy 20" Spiral Vane Solid Body Centralizer

    Ask Lasest Price
    Brand Name : Puyang Zhongshi Group
    Model Number : 4 1/2"~20"
    Certification : API,ISO,QHSE
    Price : Negotiable
    Payment Terms : T/T, MoneyGram
    Delivery Time : depends on quantity
    • Product Details
    • Company Profile

    Casting Zinc Alloy 20" Spiral Vane Solid Body Centralizer

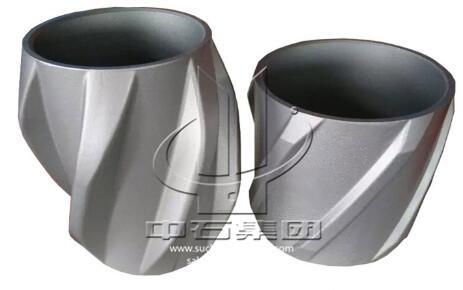

    Zinc Alloy Spiral Vane Centralizer


    These Centralizers are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Vertical, Horizontal and Deviated well

    Zinc Alloy Spiral Vane Centralizer Features
    • Suitable for either cased or open hole.
    • The design of the vanes keeps running forces at a minimum
    • Wide vanes distribute load from the casing string into the well bore without gouging.
    • Provide excellent lead into restrictions and reduced drag when running into hole.
    • Application:in deviated and horizontal wells, liner overlaps

    Zinc Alloy Spiral Vane Centralizer Specification

    Specificationcasing size (mm)Hole Size (mm)Inner Diameter (mm)Outer Diameter (mm)
    4-1/2″×6″114152118146
    5"×6 5/8"127168131162
    5-1/2″×8-1/2″140216142210
    7″×8 1/2″178216182210
    7"× 9-1/2"178241182235
    9-5/8″×12-1/4″244311248305
    13-3/8″×17-1/2"340445344439
