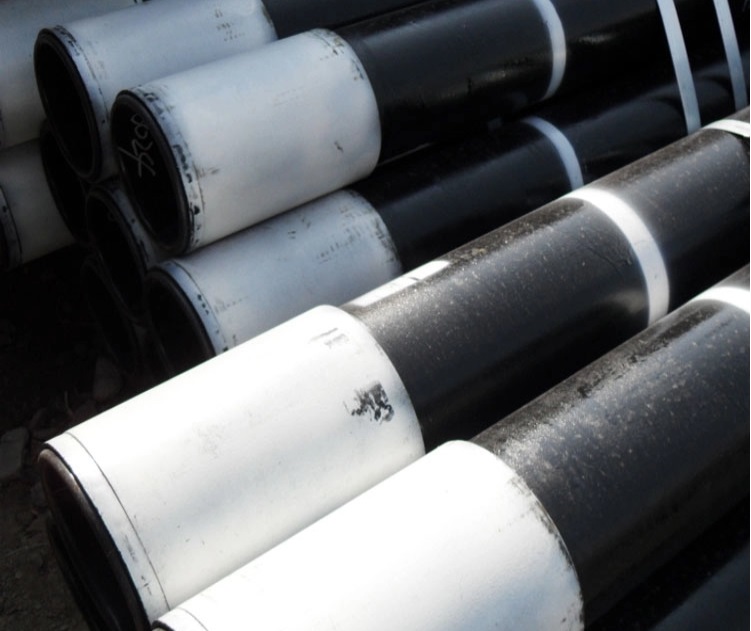

Oil Seamless Casing Pipe With Full API Size 4 1/2" - 20" For Oil Drilling

Ask Lasest Price
Brand Name :	Zhongshi
Model Number :	4 1/2"-20"
Certification :	API 5CT, ISO, QHSE
Price :	Negotiable
Payment Terms :	T/T, L/C

Add to Cart

Product Details
Company Profile

Oil Seamless Casing Pipe With Full API Size 4 1/2" - 20" For Oil Drilling

Oil Seamless Casing Pipe With Full API Size 4 1/2" to 20" For Oil Drilling And Production

Oil casing pipe:

Casing pipe is most often used in underground construction projects to encase or protect utility lines from being damaged.

Once a well has been drilled, if it is to become a production well, the well must undergo completion. While drilling a well cuts through the rock formations and allows drilling engineers to reach the reservoir below, the raw sides of the well cannot support themselves. Similar to the bones of your spine protecting the spinal cord, casing is tubing that is set inside the drilled well to protect and support the wellstream.

Features:

1.Specification range:OD: 42.16 MM - 114.3 MM(1.66"--4 1/2") WT: 3.56MM-9.52MM(2.3PPF--12.95PPF)

2. Materials: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, Q125 etc

3. Executive standards: API 5CT, GB, ISO11960, GOST

4. Thread connection: NU, EU,IJ

5. Length: R1, R2, R3

6. Testing: NDT etc related rules of API 5CT and 5B

7:Type:seamless pipe

Technical specification:

Standard		API 5CT/ ISO11960
Grade	Group.1	H40/PSL.1, J55/PSL.1, J55/PSL.2, J55/PSL.3, K55/PSL.1, K55/PSL.2, K55/PSL.3, N80(1)/PSL.1, N80(1)/PSL.2, N80(Q)/PSL.1, N80(Q)/PSL.2, N80(Q)/PSL.3
	Group.2	M65/PSL.1, M65/PSL.3, L80/PSL.2, L80(1)/PSL.1, L80(1)/PSL.3, L80(9Cr)/PSL.1, L80(13Cr)/PSL.1, C90/PSL.1, C90/PSL.2, C90/PSL.3, T95/PSL.1, T95/PSL.2T95/PSL.3
	Group.3	P110/PSL.1, P110/PSL.2, P110/PSL.3,
	Group.4	Q125/PSL.1, Q125/PSL.2, Q125/PSL.3,
Minimum Order Quantity		Negotiable
Outside Diameter	Casing	4 1/2 inch to 20 inch or 114.3mm to 508mm
Wall Thickness		According to API 5CT Standard
Length	Casing	R1 (4.88m to 7.62m), R2 (7.62m to 10.36m), R3 (10.36m to 14.63m)
Processing type		Seamless
Type of End-Finish	Casing	P, S, B, L
