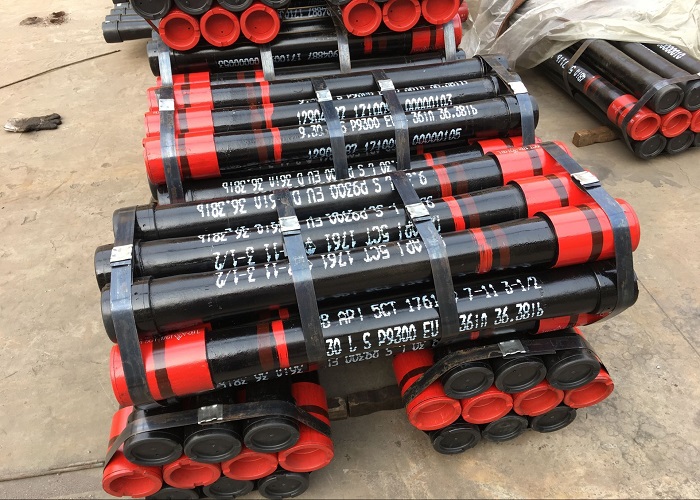

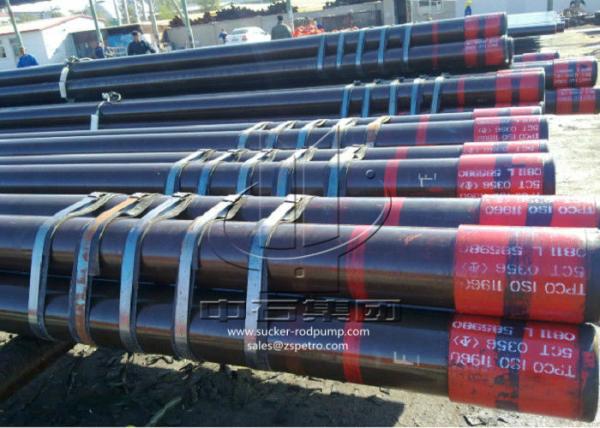

API 5CT N80 L80 J55 K55 3-1/2 with 4 ft tubing pup joint for
oilfield production
Product Description:
Tubing pup joints are available upset with 8rd thread, color coded
according to class and tensile strength, and manufactured according
to API Spec 5CT.Also our group provide the oilfield products which
include: subsurface sucker rod pump, pumping unit, cementing tools,
wellhead (Christmas Tree),float shoe&collar,centralizer,sucker
rod,pup joint,pony rod..etc
Features:
1. Grade:J55, K55, N80-1, N80-Q, L80, C90, P110
2. We also supply permium thread products by customer's request
3. Size: tubing coupling from 1.9" to 4-1/2",Casing coupling
fro4-1/2"to 13-3/8"
4. Type: NU, EU(tubing coupling), STC,LC,BTC(casing coupling).
5. Surface treatment: Whole phosphating, or inside phosphating and
outside coating
6. Packing: By carton, wooden case, wooden pallet, or by
requirements of customers
Technical Parameter:
Diameters: | 1.9" through 4.5" nominal O.D. |
Weights: | Standard or Heavy Wall |
Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request) |
Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 |
Connections: | EUE, NUE, Buttress |
Size | Type of Thread | O.D*L (mm) | Weight(kg) |
---|---|---|---|
2-3/8" | NUE | 73.02*107.95 | 1.28 |
2-3/8" | EUE | 77.80*132.82 | 1.55 |
2-7/8" | NUE | 88.90*130.18 | 2.34 |
2-7/8" | EUE | 93.17*133.35 | 2.40 |
3-1/2" | NUE | 107.95*142.88 | 3.71 |
3-1/2" | EUE | 114.30*146.05 | 4.10 |
4" | NUE | 120.65*146.05 | 4.35 |
4" | EUE | 127.00*152.40 | 4.82 |
4-1/2" | NUE | 132.08*155.58 | 4.89 |
4-1/2" | EUE | 141.30*158.75 | 6.05 |
![]() |
