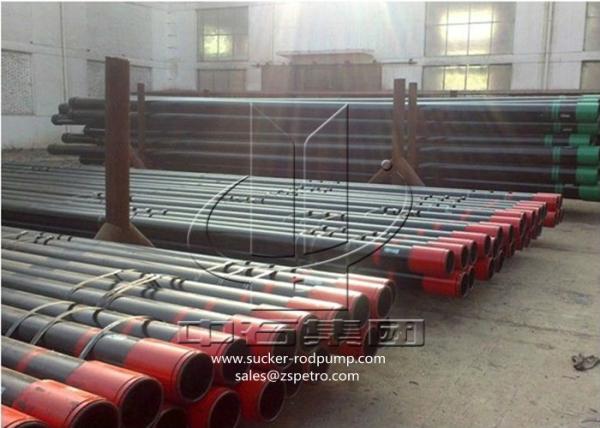

    Oil Well Casing Pipe Wall Thickness 5.21-22.22mm Outside Diameter 114.3-508mm

    API Standard N80 and N80Q Seamless Casing Pipe With Size OD 4 1/2" To 20"


    Descriptions of oil casing pipe:

    Casing seamless pipe is mainly used for supporting the wall of the well during and after the drilling to

    ensure the drilling process and the normal operation of the entire well after completion. The oil casing

    pipe is the lifeline for maintaining the operation of the oil well.


    Features:

    1. Alloy steel pipe
    2. Hot-rolled seamless pipe


    Technical specification:


    Product NameOCTG casing
    TechniqueHot Rolled
    StandardAPI 5CT
    SurfaceVarnish

    API 5CT Casing:

    Material: H40,J55,K55,N80-1,N80-Q,L80-1,L80-9Cr,L80-13Cr,C90,C95,T95,P110,Q125

    Outside Diameter: 114.3-508mm

    Wall Thickness: 5.21-22.22mm

    Type of thread: STC,LTC,BTC,

    Length: 6-14m,R1,R2,R3,also can be manufactured by customers’ requirements


    Mechanical Properties:


    steel gradetypetotal elongation under load (%)

    yield strength (Mpa)


    tensile strength (Mpa)

    min

    hardness

    max

    minmaxHRCHBW
    H40-0.5276552414--
    J55-0.5379552517--
    K55-0.5379552655--
    N8010.5552758689--
    N80Q0.5552758689--
    M65-0.544858658622235
    L8010.555265565523241
    L809 Cr0.555265565523241
    L8013 Cr0.555265565523241
    C9010.562172468925.4255
    P110-0.6758965862-

    -


    Length range:

    Length rangeRange 1Range 2Range 3
    Tubing6.10-7.32m8.53-9.75m11.58-12.80m
    Casing4.88-7.62m7.62-10.36m10.36-14.63m
    Pup joint2-20 feet 0.5-6m
