Long Stroke Oilfield Sucker Rods Cutomized Color Good Corrosion Resistance

Ask Lasest Price
Brand Name :	Zhongshi
Model Number :	sucker rod
Certification :	API ,ISO ,QHSE
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000pcs
Delivery Time :	2weeks

Add to Cart

Product Details
Company Profile

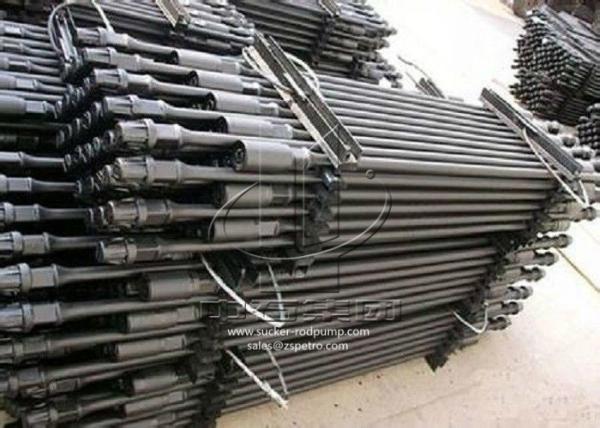

Long Stroke Oilfield Sucker Rods Cutomized Color Good Corrosion Resistance

API 11B Oilfield Sucker Rod with Pony Rod Polished Rod 3 / 4 Ft 25ft Alloy Steel AISI 4130

Products Description:

Zhongshi Group provide sucker rods are designed for transmission of translational or rotational motion from ground drive to the well pump for oil extraction. The rods are round cross-section bars whose ends are provided with upset heads and thread. The rods can be rigged with various centralizers, to protect rods, couplings, and oil well tubing from wear; rods can be additionally provided with mobile scrapers for removal of paraffin deposits. "D" class sucker rods (as per API specification) display enhanced strength and anticorrosion properties, and are highly competitive in terms of quality with the products of world famous manufacturers.

Features:

1. Grade C sucker rod is made from fine carbon steel. It is featured by mid-strength, good plasticity, toughness, corrosion resistance. It is suitable for sour medium environment where it is not susceptible to sulphuric stress cracking.

2. Grade D sucker rod is made from fine alloy steel, featured by high strength, better plasticity and long service life after heat treatment. This product is suitable for no-corrosion or light-corrosion environment oil-well widely.

3. Grade HL and HY sucker rods are super-high strength sucker rod, having the same size and main parameter as grade D sucker rod, but their strength is capable to reach 966~1195Mpa.

4. Grade HL, HY sucker rods are suitable for the deep oil-well or big-pump capacity oil-well.

5. Grade K, KD and KH sucker rod are made from fine Cr-Ni-Mo alloy steel containing different amount of Ni. They possess more powerful anti-corrosion function. The products are suitable for strong corrosion oil-well, with depth of shallow, middle and deep respectively.

Sucker rod specification:

Sucker Rod Nominal Value	5/8"	3/4"	7/8"	1"	1-1/8"
Rod Body Diameter	15.88+0.18-0.36 (0.625+0.007-0.014)	19.05+0.20-0.41 (0.750+0.008-0.016)	22.23+0.20-0.41 (0.875+0.008-0.016)	25.40+0.23-0.46 (1.000+0.009-0.018)	28.58+0.25-0.51 (1.125+0.010-0.020)
Outer Diameter Of External Thread Shoulder	31.8+0.13-0.25 (1.250+0.005-0.010)	38.1+0.13-0.25 (1.500+0.005-0.010)	41.3+0.13-0.25 (1.625+0.005-0.010)	50.8+0.13-0.25 (2.000+0.005-0.010)	57.2+0.13-0.25 (2.250+0.005-0.010)
Wrench Width ±0.8(±0.031)	22.2(0.875)	25.4(1.000)	25.4(1.000)	33.3(1.313)	38.1(1.500)
Wrench Length	31.8(1.250)	31.8(1.250)	31.8(1.250)	38.1(1.500)	41.3(1.625)
API Rod Length ±50(±2.0)	508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356)	508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356)	508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356)	508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356)	508(20) 1118(44) 1727(68) 2337(92) 2946(116) 7518(296) 9042(356)
Domestic Rod Length±50	900,1400,1900, 2400,2900,3400, 7900,9900	900,1400,1900, 2400,2900,3400, 7900,9900	900,1400,1900, 2400,2900,3400, 7900,9900	900,1400,1900, 2400,2900,3400, 7900,9900	900,1400,1900, 2400,2900,3400, 7900,9900
Upset Flange Diameter	31.1+0.13-3.17 (1.219+0.005-0.125)	35.7+0.13-3.17 (1.406+0.005-0.125)	38.1+0.13-3.17 (1.500+0.005-0.125)	48.4+0.13-3.17 (1.906+0.005-0.125)	55.6+0.13-3.17 (2.188+0.005-0.125)
AR±3.2(±0.125)	47.6(1.875)	57.1(2.250)	66.7(2.625)	76.2(3.000)	85.7(3.375)
CR+1.59-0.40 (+0.063-0.016)	3.2(0.125)	3.2(0.125)	4.8(0.188)	4.8(0.188)	4.8(0.188)

Mechanical Properties Of Steel Sucker Rod
Grade	Minimum Yield Strength(0.2% Residual Deformation)		Minimum Tensile Strength		Maximum Tensile Strength		Elongation200mm%	Reduction Of Area Z%	Surface Hardness HRC	Core Hardness HB	Fatigue Life
K	60000	414	90000	621	115000	793	≥13	≥50
C	60000	414	90000	621	115000	793	≥13	≥50
D	85000	586	115000	793	140000	965	≥13	≥50
KD	85000	590	115000	795	140000	965	≥13	≥50
HL	115000	795	140000	965	173339	1195	≥13	≥45
HY	/	/	140000	965	173339	1195	/	/	≥42	≥224
EHL	/	/	188500	1300	217500	1500	/	/	≥50	≥320	≥2.5X106
Note: when the yield strength cannot be measured, it should be considered to be processed into standard sample installation drawing
A: It is generally made of high quality carbon steel, which can reach the mechanical properties of the table. B Molybdenum steel (but not limited to this type of steel) is generally used, and the mechanical properties of this table can be achieved through effective heat treatment.
