    Gas Oil Well Tubing Hot Rolled Processing API 5CT ISO QHSE Certification

    Ask Lasest Price
    Brand Name : Zhongshi
    Model Number : 1.05"-4 1/2"
    Certification : API 5CT, ISO, QHSE
    Payment Terms : T/T, L/C
    Price : Negotiable
    • Product Details
    • Company Profile

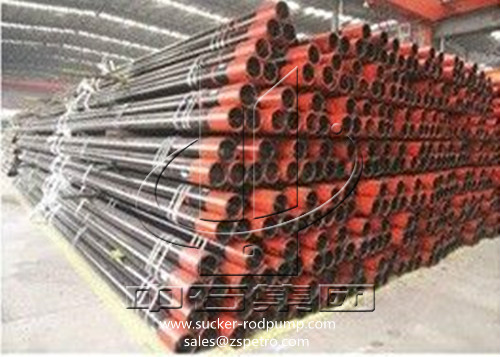

    Gas Oil Well Tubing Hot Rolled Processing API 5CT ISO QHSE Certification

    Oil And Gas Oilfield Tubing Pipe In Seamless OCTG With High Quality


    Description:


    Seamless steel tubes for oil casing and tubing in oil and gas well. Tubing pipe is mounted in the production

    casing after the oil well is dig and cemented. It is a seamless pipe which transport oil and gas to the ground.


    Features:


    1. Seamless oil pipe

    2. Hot-rolling pipe

    3. Size OD: 1.05”-4 1/2”


    Technical specification:


    Product nameTubing pipe
    StandardAPI 5CT
    Steel gradeJ55/K55, N80, L80, L80-9Cr, L80-13Cr, C90, T95, C95, P110, Q125
    ThreadLTC, STC, BTC
    Length

    Casing: R1(4.88-7.62m),R2(7.62-10.36m),R3(10.36-14.63m)

    Tubing: R1(6.10-7.32M), R2(8.53-9.75M), R3(11.58-12.80M)


    Outer diameter1.05”-4 1/2”
    Wall Thickness2.87mm-16.00mm
    Surface TreatmentBlack oil painting+green /red /white / brown painting
    Third Party InspectionISO,BV, SGS

    Mechanical properties:


    steel gradetypetotal elongation under load (%)

    yield strength (Mpa)


    tensile strength (Mpa)

    min

    hardness

    max

    minmaxHRCHBW
    H40-0.5276552414--
    J55-0.5379552517--
    K55-0.5379552655--
    N8010.5552758689--
    N80Q0.5552758689--
    M65-0.544858658622235
    L8010.555265565523241
    L809 Cr0.555265565523241
    L8013 Cr0.555265565523241
    C9010.562172468925.4255
    P110-0.6758965862-

    -
