Brand Name : | zhongshi |
Model Number : | pup joint |
Certification : | API 5CT ,ISO ,QHSE |
Price : | Negotiable |
Payment Terms : | T/T |
Delivery Time : | 2 weeks |

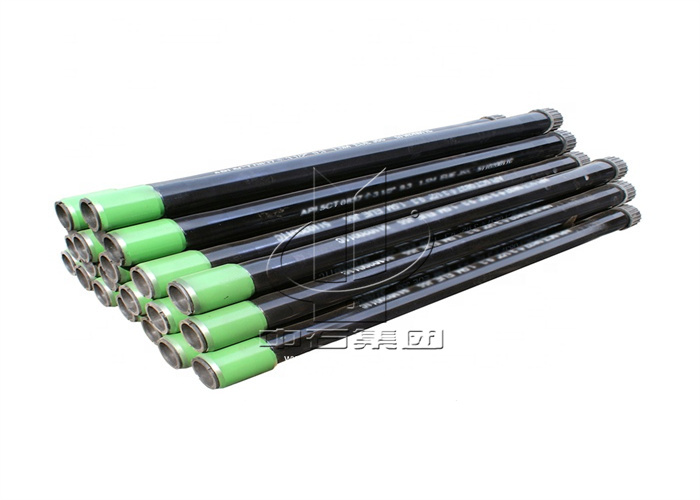

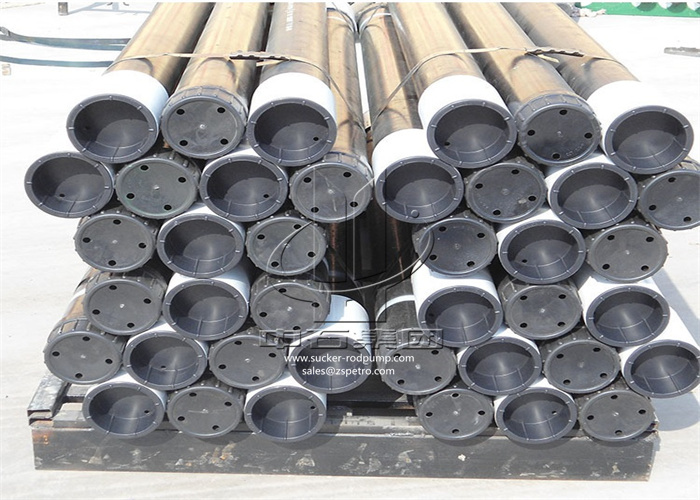

NUE & EUE J55 Tubing Pup Joint Heavy Wall Steel API Tubing Tools
Product Description:
Pup Joints are used to adjust the height of full length tubing or
casing strings. They are also used to adjust the depth of downhole
tools. Pup Joint sets are available in: Integral Premium Thread
Box-by-Pin Pin-by-Pin with couplings boxed separately Pin-by-Pin
with couplings hand tight Pin-by-Coupling Box Flush joint
connections
Technical Parameter:
Diameters: | 1.9" through 4.5" nominal O.D. |
Weights: | Standard or Heavy Wall |
Lengths: | 2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request) |
Grades: | J-55, N-80, N-80 Q & T, L-80, P-110 |
Connections: | EUE, NUE, Buttress |
Size | Type of Thread | O.D*L (mm) | Weight(kg) |
---|---|---|---|
2-3/8" | NUE | 73.02*107.95 | 1.28 |
2-3/8" | EUE | 77.80*132.82 | 1.55 |
2-7/8" | NUE | 88.90*130.18 | 2.34 |
2-7/8" | EUE | 93.17*133.35 | 2.40 |
3-1/2" | NUE | 107.95*142.88 | 3.71 |
3-1/2" | EUE | 114.30*146.05 | 4.10 |
4" | NUE | 120.65*146.05 | 4.35 |
4" | EUE | 127.00*152.40 | 4.82 |
4-1/2" | NUE | 132.08*155.58 | 4.89 |
4-1/2" | EUE | 141.30*158.75 | 6.05 |
![]() |
