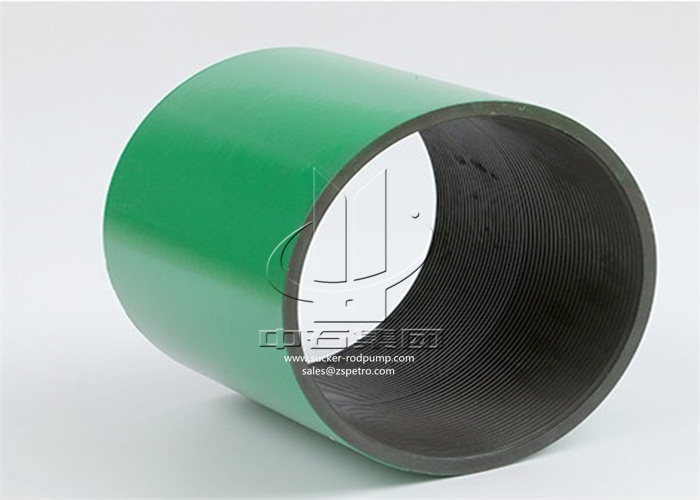

API Tubing & Casing Connection Tool Pup Joint With EUE Coupling
Product Description:
Pup Joints are used to adjust the height of full length tubing or
casing strings. They are also used to adjust the depth of downhole
tools. Pup Joint sets are available in: Integral Premium Thread Box
x Pin with couplings boxed separately Pin-by-Pin with couplings
hand tight Pin-y-Coupling Box Flush joint connections
Features:
Size | Type of Thread | O.D*L (mm) | Weight(kg) |
---|---|---|---|
2-3/8" | NUE | 73.02*107.95 | 1.28 |
2-3/8" | EUE | 77.80*132.82 | 1.55 |
2-7/8" | NUE | 88.90*130.18 | 2.34 |
2-7/8" | EUE | 93.17*133.35 | 2.40 |
3-1/2" | NUE | 107.95*142.88 | 3.71 |
3-1/2" | EUE | 114.30*146.05 | 4.10 |
4" | NUE | 120.65*146.05 | 4.35 |
4" | EUE | 127.00*152.40 | 4.82 |
4-1/2" | NUE | 132.08*155.58 | 4.89 |
4-1/2" | EUE | 141.30*158.75 | 6.05 |
![]() |
