Resin Spiral Oil Casing Centralizers / Api Drilling Nonwelded Hinged Bow Casing Centralizers

Ask Lasest Price
Brand Name :	ZS
Model Number :	5-1/2"X8-1/2"to20"X26"
Certification :	API 11AX
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000sets/month
Delivery Time :	15 work days

Add to Cart

Product Details
Company Profile

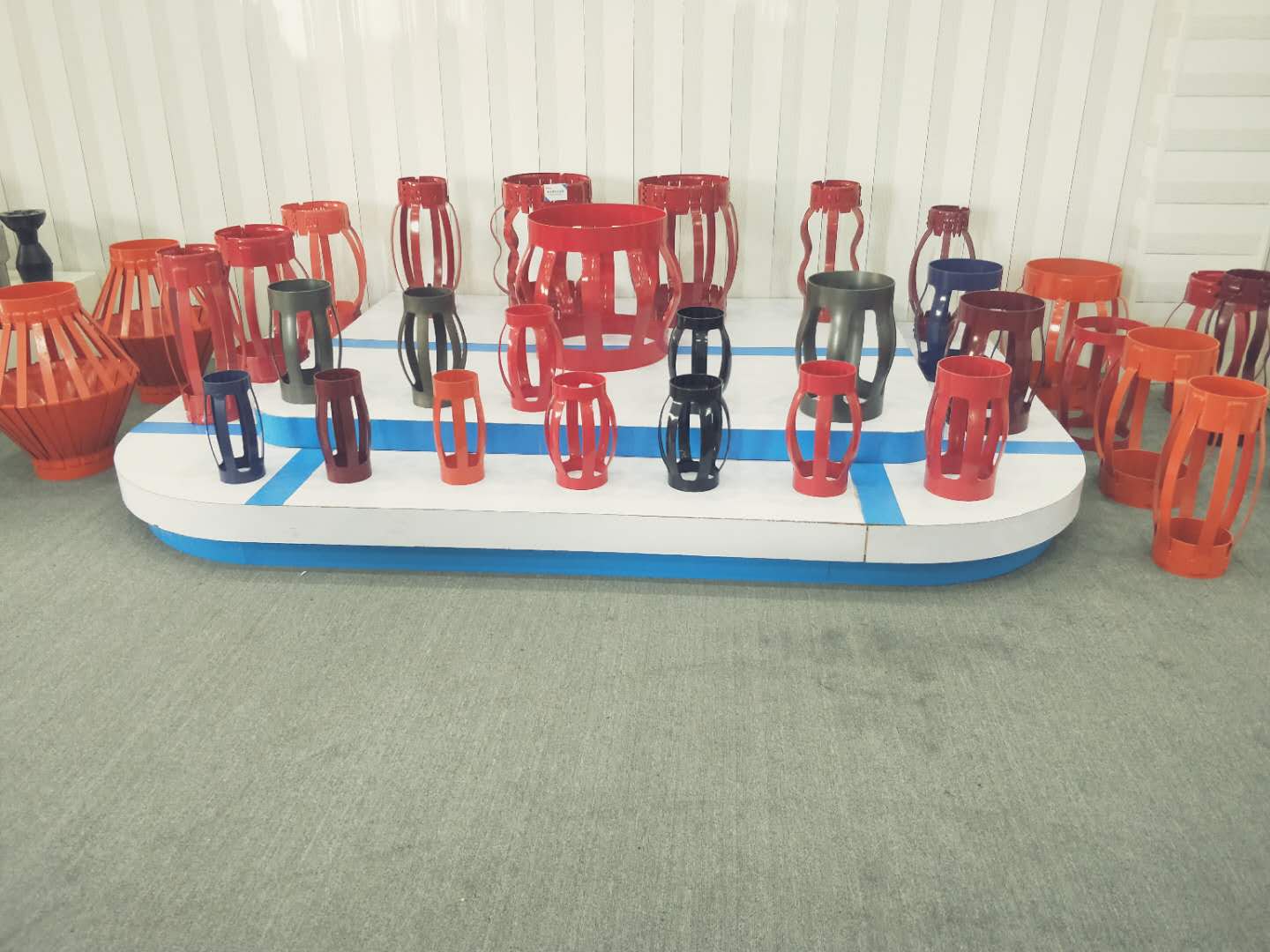

Resin Spiral Oil Casing Centralizers / Api Drilling Nonwelded Hinged Bow Casing Centralizers

API 10D Oilfield Cementing tool bow spring casing centralizer

Product Description

1. API single piece casing centralizer performs satisfactorily in open hole as well as cased hole.

2. These high quanlity product,developed to meet and exceed API 10D specifications for use in highly demanding downhole conditions.

3. Single piece casing centralizer combines the highest restoring force with zero start force and zero running force.

4. The single piece centralizer is used to position the casing in the center of the wellbore in vertical deviated and horizontal wells.

5. The single piece centralizer reduces the effect of channelling by improving the cement flow,the results in more uniform cement thickness in the well bore.

6. By reducing the pipe movement before cement sets in.The single piece centralizers are able to minimize gas channelling.

Technical Parameter
Spring Casing Centralizer	Size(In)	OD(mm)	IN(mm)	Height(mm)	Max Start-up Force(N)	Min Reset Force(N)
	20"	680	512	575	≤16725	≥8363
	13-3/8"	455	342	560	≤10853	≥5427
	9-5/8"*12-1/4"	335	248	560	≤7117	≥7117
	7"	235	181	560	≤4626	≥4626
	6-5/8"*8-3/4"	238	171	560	≤4270	≥4270
	5-1/2”*8-1/2”	235	142	560	≤2758	≥2758

Rigid Centralizer	13-3/8"	437	344	180
	9-5/8"*12-1/4"	305	248	120
	7"	210	182	120
	6-5/8"*8-3/4"	215	171	120
	5-1/2"*8-1/2"	210	142	120

Semi-rigid Centralizer	Single Bow Spring Centralizer	Double-bow Spring Centralizer

Integral Centralizer	Rigid Centralizer	Rigid Roller Centralizer

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance.
