Api Standard Elastic Spring Casing Centralizer / Half Rigid Casing Centralizers

Ask Lasest Price
Brand Name :	ZS
Model Number :	5-1/2"X8-1/2"to20"X26"
Certification :	API 11AX
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000sets/month
Delivery Time :	15 work days

Add to Cart

Product Details
Company Profile

Api Standard Elastic Spring Casing Centralizer / Half Rigid Casing Centralizers

API 10D Oilfield Cementing tool bow spring casing centralizer

Product Description

The Single Piece Bow Spring Casing Centralizer is newly designed integrated steel flexible Centralizer used to centralize casing during the cementing stage of oil wells. Fully integrated (SLIP-ON) centralizers are manufactured in any diameter and as per customer requirements.

The blades, top and bottoms rings are made of one piece to ensure the centralizer s integrity during rig operations.

The specifications comply with API Spec 10D for starting compression, running down hole and expansion force.
These centralizers offer high fatigue strength for axial forces and radial side loads on bows during tubular rotation.

More flexibility as comparison to other spring bow centralizer.

Technical Parameter
Spring Casing Centralizer	Size(In)	OD(mm)	IN(mm)	Height(mm)	Max Start-up Force(N)	Min Reset Force(N)
	20"	680	512	575	≤16725	≥8363
	13-3/8"	455	342	560	≤10853	≥5427
	9-5/8"*12-1/4"	335	248	560	≤7117	≥7117
	7"	235	181	560	≤4626	≥4626
	6-5/8"*8-3/4"	238	171	560	≤4270	≥4270
	5-1/2”*8-1/2”	235	142	560	≤2758	≥2758

Rigid Centralizer	13-3/8"	437	344	180
	9-5/8"*12-1/4"	305	248	120
	7"	210	182	120
	6-5/8"*8-3/4"	215	171	120
	5-1/2"*8-1/2"	210	142	120

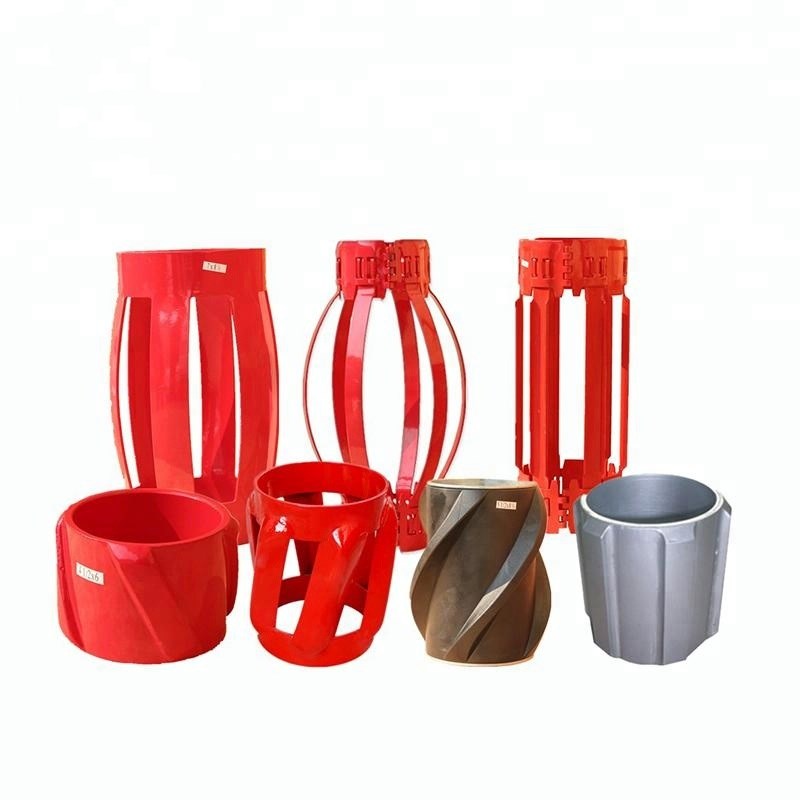

Semi-rigid Centralizer	Single Bow Spring Centralizer	Double-bow Spring Centralizer

Integral Centralizer	Rigid Centralizer	Rigid Roller Centralizer

Our Services

All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.

· Zhongshi Group is the API certification enterprise for 15 years;

· ISO9001 quality management system;

· We provide on-site technical service,no matter when and where.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance.
