Api 10d Rigid Hinged Casing Centralizers For Oil Casing Cementing

Ask Lasest Price
Brand Name :	ZS
Model Number :	5-1/2"X8-1/2"to20"X26"
Certification :	API 11AX
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000sets/month
Delivery Time :	15 work days

Add to Cart

Product Details
Company Profile

Api 10d Rigid Hinged Casing Centralizers For Oil Casing Cementing

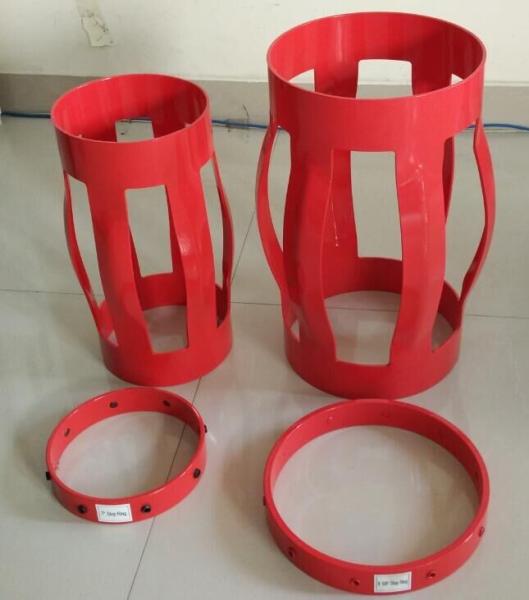

API 10D Oilfield Cementing tool bow spring casing centralizer

Product Description

Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over.

Spec and performance index of bow spring casing centralizer meet API Spec 10D.

The casing centralizer is connected by pin when operation, the unfolded centralizer can be stacked flatly for convenient storage and transportation.

Technical Parameter
Spring Casing Centralizer	Size(In)	OD(mm)	IN(mm)	Height(mm)	Max Start-up Force(N)	Min Reset Force(N)
	20"	680	512	575	≤16725	≥8363
	13-3/8"	455	342	560	≤10853	≥5427
	9-5/8"*12-1/4"	335	248	560	≤7117	≥7117
	7"	235	181	560	≤4626	≥4626
	6-5/8"*8-3/4"	238	171	560	≤4270	≥4270
	5-1/2”*8-1/2”	235	142	560	≤2758	≥2758

Rigid Centralizer	13-3/8"	437	344	180
	9-5/8"*12-1/4"	305	248	120
	7"	210	182	120
	6-5/8"*8-3/4"	215	171	120
	5-1/2"*8-1/2"	210	142	120

Semi-rigid Centralizer	Single Bow Spring Centralizer	Double-bow Spring Centralizer

Integral Centralizer	Rigid Centralizer	Rigid Roller Centralizer

Our Services

All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.

· Zhongshi Group is the API certification enterprise for 15 years;

· ISO9001 quality management system;

· We provide on-site technical service,no matter when and where.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance.
