Description:

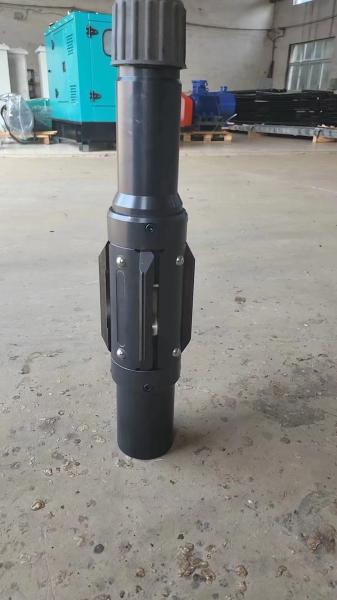

Instructions for Torque Anchor:

1. Select an appropriate anchor based on the casing size, ensuring that the lower end is connected to the pump stator.

2. Orient the tubing anchor towards the well: The internal thread (marked with "TOP" on steel seal) should be positioned at the upper end, while the external thread should be at the lower end. Rotate in reverse by 1/3 turn when loading it into the casing. Insert it smoothly into the casing mouth and tighten it according to recommended force for tubing threading.

3. Lower the pump stator to a predetermined depth, then apply a clockwise moment of 400N·m to secure both the tubing string and wellhead. This will ensure that torque anchor is securely anchored onto the casing.

4. It is recommended to use a tubing centralizer at both ends of t

Specification:

Puyang Zhongshi Group Co., Ltd., restructured from SINOPEC in 1997 has 20 years experience on manufacturing petroleum machinery products . The company registered capital is 10 million U.S. dollars, with annual export 30 million U.S. Dollars.

We have competitive price of our main products like: subsurface sucker rod pump, pumping unit, cementing tools, wellhead (Christmas Tree), etc, with certificates of API11AX,API11E,API6A,API5CT,ISO14001 and ISO9001 approved. We have 9 factories, 580 employees, including more than 160 technicians and engineers.

With 20 years manufacturing experience and more than 10 years exporting experience, our main clients include all oilfields in China such as: Zhongyuan, Daqing, Shengli, Changqing, Nanyang, Karamay, etc and we have exported to more than 30 countries abroad such as: Indonesia, Thailand, Myanmar, Russia, Kazakhstan, Venezuela, Peru, Columbia, Canada, America, Sudan, Egypt, Iran, Australia etc.

We would like to cooperate with friends from all over the world with high quality products and service to achieve mutual development .
