    Seamless Well Pump Casing Pipe Tube API 5CT J55 K55 N80 L80 P110

    Ask Lasest Price
    Brand Name : ZS
    Model Number : 4 1/2"-20"
    Certification : API
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000Meters/month
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

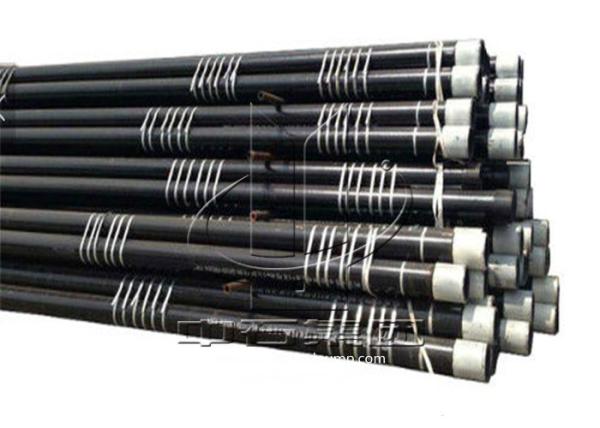

    Seamless Well Pump Casing Pipe Tube API 5CT J55 K55 N80 L80 P110

    Oilfield 13 3/8" Seamless Casing Pipe With Steel Grades K55 J55 N80 L80 P110


    Description of casing pipe:

    Casing pipes play a crucial role in oil and gas well construction, providing essential support to the wellbore walls. They are categorized into three types: surface casing, protective casing, and production casing..



    Features of casing pipe:

    1. Alloy steel seamless pipe
    2. Size OD 4 1/2”-20”

    Technical specification of casing pipe:

    Production name OCTG 11-3/4" API 5CT steel casing pipe
    OD size (in) 4-1/2" ~ 20"
    Steel grade J55/K55/N80/L80/P110
    Thread type LTC,STC,BTC
    Length R1 (4.88mtr-7.62mtr)
    R2 (7.63mtr-10.36mtr)
    R3 (10.37mtr-14.63mtr)
    Heat treatment Normalized,Quencher+Temper



    Mechanical properties of casing pipe:

    Grade Yield Strength Tensile Strenght Hardness Allowable
    Min Max Min Max Max Hardness
    Psi Mpa Psi Mpa Psi Mpa HRC BHN Variation
    J55 55,000 379 80,000 552 75,000 517 - - -
    K55 55,000 379 88,000 552 95,000 655 - - -
    N80 80,000 552 110,000 758 100,000 689 - - -
    N80-1 80,000 552 95,000 655 95,000 655 23 241 -
    C90 90,000 621 105,000 724 100,000 689 25.4 255 3
    C95 95,000 655 110,000 758 105,000 724 - - -
    T95 95,000 655 110,000 758 105,000 724 25.4 255 3
    P110 110,000 758 140,000 965 125,000 862 - - -

    Specification of casing pipe
    Specification range
    Outer diameter:114.3MM-508MM(4 1/2"-20")Wall thickness:5.21MM-16.13MM(9.5PPF-133PPF
    Material
    H40,J55,K55,N80-1,N80-Q,L80-1,L80-9Cr,L80-13Cr,P110
    Executive standards
    API 5CT,ISO9001
    Thread type
    STC,LTC,BTC,XC and Premium connection
    Length
    R1,R2,R3
    Test
    NDT etc related rules of API 5CT and 5B

    Company Information

    Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.

    We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
