API 11B 4130 Alloy Steel Oilfield Sucker Rods Pony Rods

Ask Lasest Price
Brand Name :	Zhongshi
Model Number :	sucker rod
Certification :	API ,ISO ,QHSE
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000pcs
Delivery Time :	2weeks

Add to Cart

Product Details
Company Profile

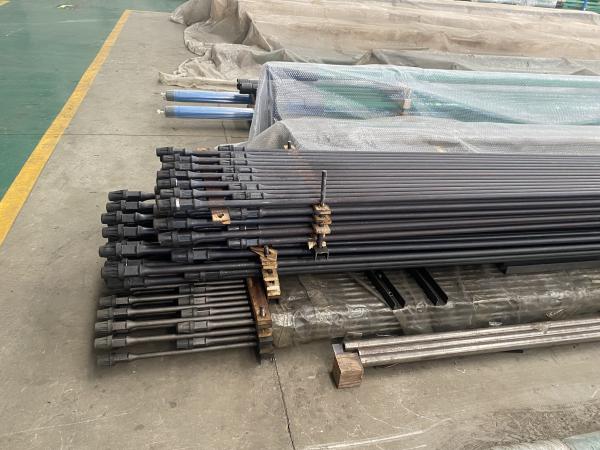

API 11B 4130 Alloy Steel Oilfield Sucker Rods Pony Rods

Sucker Rod Introduction:

The sucker rod is a steel rod that used to make up the mechanical assembly between the surface and downhole components of a rod pumping system.
The product conforms to API Specification 11B (Oil extraction rod Standard) and other related standard, authorized to use the API monogram.
All sizes of sucker rod (standard, heavy, polish rod) which conform to API specification latest version 11B are available in grade K, C, D and HL.

Size in (mm)	Rod Body diameter in (mm)	diameter of ext. thread in (mm)	Full size Coupling OD mm (in)	Coupling OD mm (in)	Wrench square W*L mm (in)	Length series m (ft)
5/8 (16)	5/8 (15.88)	15/16 (23.81)	38.10(1.5)	31.8 (1.25)	22.2×31.8 (7/8×1-1/4)	7.62 (25)
3/4 (19)	3/4 (19.05)	1-1/16(26.99)	41.28(1.625)	38.1 (1.5)	25.4×31.8 (1×1-1/4)	9.14 (30)
7/8 (22)	7/8 (22.23)	1-3/16 (30.16)	46.0(1.812)	41.3 (1.625)	25.4×31.8 (1×1-1/4)	0.6 (2), 1 (3)
1 (25)	1 (25.40)	1-3/8 (34.93)	55.6(2.187)	50.8 (2)	33.3×38.1(1-5/16×1-1/2)	2 (6), 3 (10)
1-1/8 (28)	1-1/8 (28.58)	1-9/16 (39.7)	60.33(2.375)	57.2 (2.25)	38.1×41.3 (1-1/2×1-5/8)

Mechanical Properties of Sucker Rods:

Grade	Min Yield strength 0.2% offset M Pa (psi)	Tensile strength M Pa (psi)	Elongation δ%	Reduction of area ψ%
K	414 (60, 000)	621-793(90, 000-115, 000)	≥13	≥60
C	414 (60, 000)	621-793(90, 000-115, 000)	≥13	≥50
D	586 (84, 970)	793-965 (114, 985-139, 925)	≥10	≥50
KD	590(85, 000)	793-965 (114, 985-139, 925)	≥10	≥50
HL	795(115,000)	965-1,195(140,000-173,339)	≥10	≥45
HY	540 (78, 300)	965-1,195(140,000-173,339)	≥42	≥224

Technical Performances:

Adopting the advanced production line crack detecting, quenching, the continuous overall tempering and sand blasting processes to
achieve higher mechanical strength ability with overall good performance.The thread is cut by the special-purpose numerical
control lathe which keeps the rod body still when cutting the threads. The special process could ensure the high precision of the
thread with better reliability and life-span.
